Ultrasonic Atomization And Aggregation Of Solar Glass Coating

Moq:	1 UNIT
harga:	Negotation
Kemasan Standar:	Dikemas oleh kasing kayu
Metode pembayaran:	T/T, Western Union
Kapasitas pasokan:	1000 unit per bulan

Informasi Detail

Deskripsi produk

Informasi Detail

Tempat asal

Nama merek

FUNSONIC

Sertifikasi

Nomor model

FS620

Nama Produksi:

Mesin Penyemprotan Presisi Ultrasonik

Frekuensi:

20-200khz untuk Opsional

Kekuatan maksimal:

Volume Penyemprotan Berkelanjutan Maks:

20-1200ml/jam/pcs,Skalable

Lebar Penyemprotan Efektif:

2-260mm/pcs,Skalable

Keseragaman Semprot:

Viskositas larutan:

≤30cps

Tegangan masukan:

220V±10%/50-60Hz

Menyoroti:

20-200KHz Frequency Ultrasonic Spray Coating Machine

95% Spray Uniformity Ultrasonic Precision Spraying Machine

20-1200ml/h Spraying Volume Ultrasonic Spray Coater

Deskripsi produk

Ultrasonic Atomization And Aggregation Of Solar Glass Coating

Product Overview

Solar glass coating ultrasonic atomization aggregation coating is an emerging technology primarily used to enhance the performance of glass surfaces. This coating maintains high transparency without affecting the visual effect of the glass, effectively prevents water droplets and oil stains from adhering, facilitates easy cleaning, improves scratch resistance, and extends service life.

Technical Specifications

Parameter	Specification
Product Type	Intelligent Ultrasonic Precision Coating Machine Desktop Type FS620
Spray Nozzle Operating Frequency	20-200KHz (Normally use 60/100/110/120K)
Nozzle Power	1-15W
Continuous Spraying Volume Max	0.01-50ml/min
Effective Spraying Width	2-100mm
Spray Uniformity	≥95%
Solution Conversion Rate	≥95%
Dry Film Thickness	20nm-100μm
Solution Viscosity	≤30cps
Temperature Range	1-60℃
Atomized Particles (Median Value)	10-45μm (distilled water), determined by the frequency of the nozzle
Diversion Pressure Max	≤0.15MPA
Input Voltage	220V±10%/50-60Hz
Exercise Mode	XYZ three-axis, independently programmable
Control Mode	FUNSONIC spraying control system, PLC control, 13.3-inch full-color touch screen
Control Content	Ultrasonic spraying, liquid supply, heating, ultrasonic dispersion and other systems
Liquid Supply Method	Precision injection pump
Ultrasonic Dispersion System (Optional)	20ml or 50ml, 40K, biological grade sampler
Rated Power of Ultrasonic Dispersion System	100W

Performance Advantages

Improved Wear Resistance: Enhanced by 30% to 80% compared to uncoated glass, depending on coating thickness, material composition, and environmental factors
Testing Standards: Low friction coefficient reduces scratch potential; evaluated using Mohs hardness and other hardness testing methods
Practical Applications: Automotive glass shows significantly higher wear resistance in frictional environments with dust or particulate matter; architectural glass effectively resists light scratches and maintains smooth surfaces
Maintenance Factors: Use soft fabric for cleaning to preserve coating integrity and wear resistance

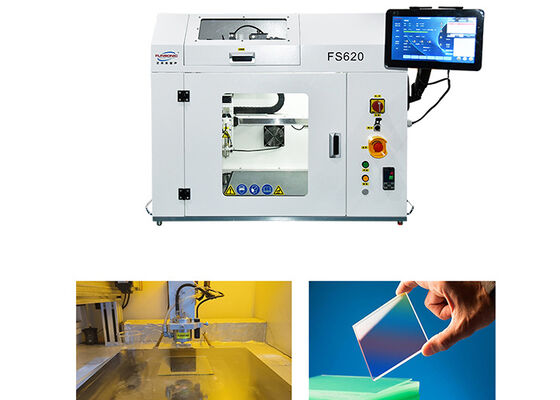

Product Images

Tag:

Jalur Produksi Untuk Jarum Suntik Teknologi Lapisan Semprot Ultrasonik Untuk Kapal Pengumpulan Darah BTC Dan Tabung Injeksi

Hubungi Sekarang

Video

Produk

Moq:	1 UNIT
harga:	Negotation
Kemasan Standar:	Dikemas oleh kasing kayu
Metode pembayaran:	T/T, Western Union
Kapasitas pasokan:	1000 unit per bulan

Informasi Detail

Deskripsi produk

Informasi Detail

Tempat asal

Cina

Nama merek

FUNSONIC

Sertifikasi

Nomor model

FS620

Nama Produksi:

Mesin Penyemprotan Presisi Ultrasonik

Frekuensi:

20-200khz untuk Opsional

Kekuatan maksimal:

50W

Volume Penyemprotan Berkelanjutan Maks:

20-1200ml/jam/pcs,Skalable

Lebar Penyemprotan Efektif:

2-260mm/pcs,Skalable

Keseragaman Semprot:

<5%

Viskositas larutan:

≤30cps

Tegangan masukan:

220V±10%/50-60Hz

Kuantitas min Order:

1 UNIT

Harga:

Negotation

Kemasan rincian:

Dikemas oleh kasing kayu

Syarat-syarat pembayaran:

T/T, Western Union

Menyediakan kemampuan:

1000 unit per bulan

Menyoroti

20-200KHz Frequency Ultrasonic Spray Coating Machine

95% Spray Uniformity Ultrasonic Precision Spraying Machine

20-1200ml/h Spraying Volume Ultrasonic Spray Coater

Deskripsi produk

Ultrasonic Atomization And Aggregation Of Solar Glass Coating

Product Overview

Technical Specifications

Parameter	Specification
Product Type	Intelligent Ultrasonic Precision Coating Machine Desktop Type FS620
Spray Nozzle Operating Frequency	20-200KHz (Normally use 60/100/110/120K)
Nozzle Power	1-15W
Continuous Spraying Volume Max	0.01-50ml/min
Effective Spraying Width	2-100mm
Spray Uniformity	≥95%
Solution Conversion Rate	≥95%
Dry Film Thickness	20nm-100μm
Solution Viscosity	≤30cps
Temperature Range	1-60℃
Atomized Particles (Median Value)	10-45μm (distilled water), determined by the frequency of the nozzle
Diversion Pressure Max	≤0.15MPA
Input Voltage	220V±10%/50-60Hz
Exercise Mode	XYZ three-axis, independently programmable
Control Mode	FUNSONIC spraying control system, PLC control, 13.3-inch full-color touch screen
Control Content	Ultrasonic spraying, liquid supply, heating, ultrasonic dispersion and other systems
Liquid Supply Method	Precision injection pump
Ultrasonic Dispersion System (Optional)	20ml or 50ml, 40K, biological grade sampler
Rated Power of Ultrasonic Dispersion System	100W

Performance Advantages

Improved Wear Resistance: Enhanced by 30% to 80% compared to uncoated glass, depending on coating thickness, material composition, and environmental factors
Testing Standards: Low friction coefficient reduces scratch potential; evaluated using Mohs hardness and other hardness testing methods
Practical Applications: Automotive glass shows significantly higher wear resistance in frictional environments with dust or particulate matter; architectural glass effectively resists light scratches and maintains smooth surfaces
Maintenance Factors: Use soft fabric for cleaning to preserve coating integrity and wear resistance

Product Images
